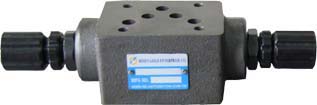

Modular Throttle Check Valve
Spec.
Port Size |
Max. Working Pressure (bar) |
Max. Flow |
Flow Adjusting |
02 |
210 |
40 |
0.3–40 |
03 |
80 |
0.5–80 |
|
06 |
190 |
1.0–190 |
How to order
STC |
02 |
W |
X |
Serial No. |
Port Size (mm) |

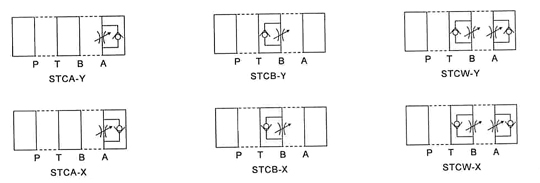

Circuit Control |
Throttle Type |
Modular Throttle Check Valve |
02: 6 |
A:A Hole |
Y=Outlet Throttled |
