SBSG



Low-Noise Solenoid Controlled Relief Valve
How to order

SBS

–G

06

–1P

–3

–R

Series No.

Fixing Type

Port Size

Controling type

Pressure Adjusting Range
(bar)

Adjusting Knob Position

Low-Noise Solenoid Relief Valve

 G：Sub-plate

03：10mm
06：20mm
10：32mm

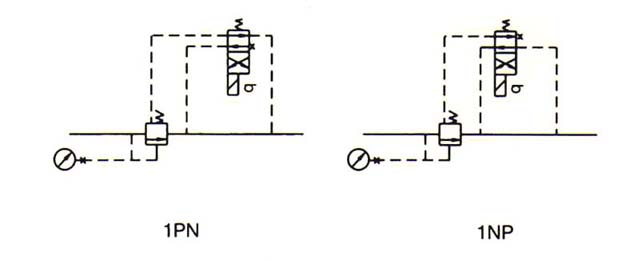

1PN：Normally Open
1NP：Normally Close

1：7–70
2：35–140
3：70–210

No symbol (standard)
Left side (T)
R：(special)
Right side (P)





SPEC.


Item No.

Max. Pressure(bar)

Pressure Adjusting Range(bar)

Max. Flow Rate (1pm)

Fixing Bolt

SBSG–03–*–10

 250

1：7–70
2：35–150
3：70–210

100

4–M12X40L

SBSG–06–*–10

200

4–M16X50L

SBSG–10–*–10

400

M20X60L
