logic valve logic valve symb
Type
LCV

Logic Valve

How to Order
LCV

-16

 -D -20

Seroes No.

Port Size

 Type Cracking Pressure (bar)

LCV : normally close

LCD : normally open

16, 25, 32, 40,50, 63

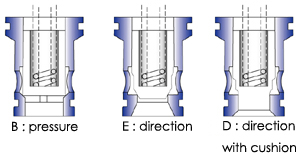

 B : pressure
E : direction
D : direction with cushion		 05 : 0.5
20 : 2
50 : 5


Spec.

Item No.

Max. Pressure
(bar)

 Rated Flow
l/min

Max. Flow
l/min

 Weight
(kg)
LCV-16 350 130 200 0.21
LCV-20 230 310 0.32
LCV-25 350 450 0.47
LCV-32 500 700 0.91
LCV-40 850 1100 1.59
LCV-50 1400 1700 2.58
LCV-63 2100 2800 5.6
LCV-80 3600 4500 15.9
LCV-100 6000 7000 28
LCVD-25 500 700 0.5
LCVD-32 850 1100 1.1
LCVD-40 1400 1700 1.89
LCVD-63 2100 2800 6.5
